Standard Gate Valve Lockout SGVL11-17

Short Description:

Standard Gate Valve Lockout SGVL11-17

Accept up to 2 padlocks, locking shackle max diameter 8mm

  • Standard Gate Valve Lockout SGVL11-17 (Size from 1″-25″).

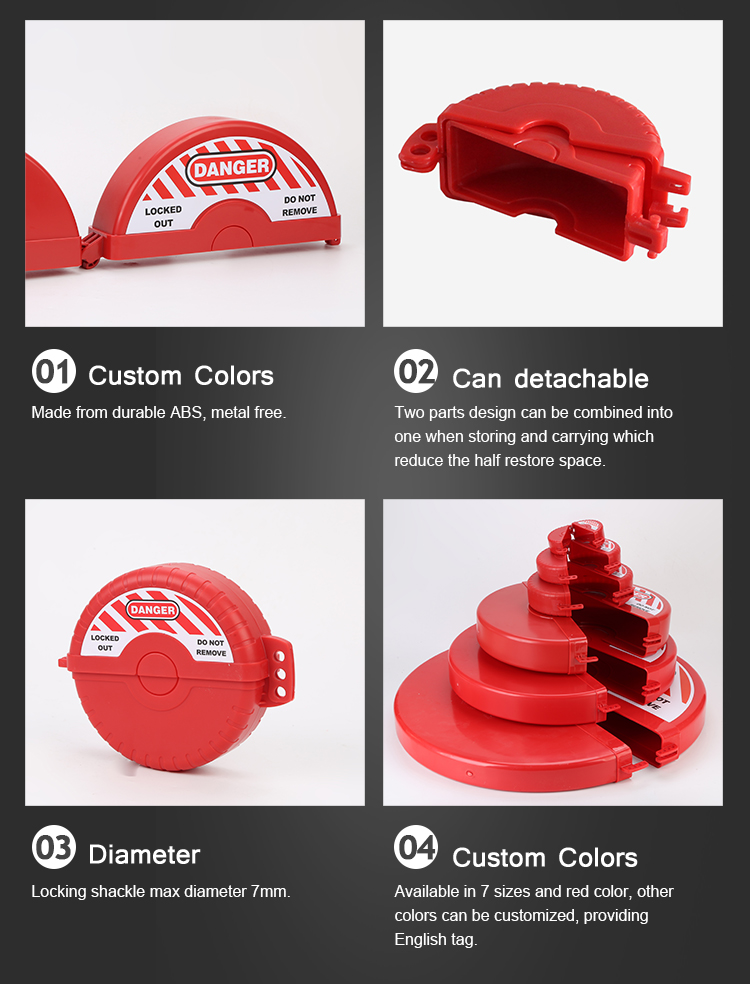

  • a) Made from durable ABS, withstand temperature from -20℃ to +90℃, metal free..

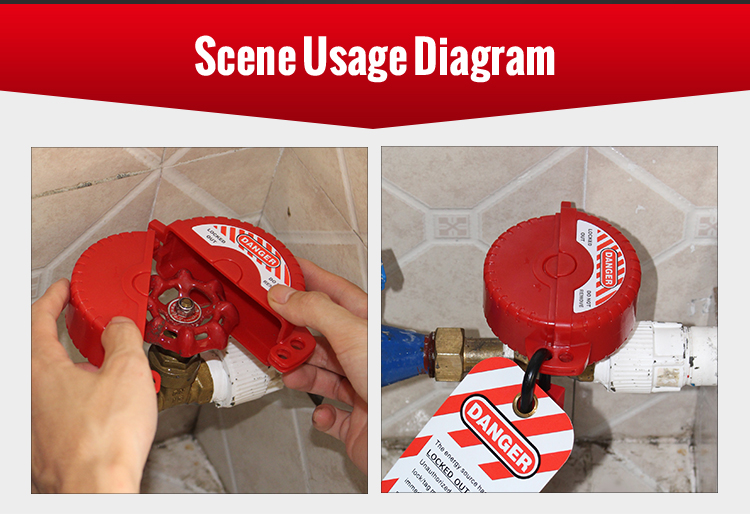

  • b) Once locked, it covers around the hand wheel and prevent the valve wheel from being turned..

    • c) Two parts design can be combined into one when storing and carrying which reduce the half restore space.

    d) Accept up to 2 padlocks, locking shackle max diameter 8mm.

    Available in 7 sizes and red color, other colors can be customized, providing English tag.

    Related Products

    Standard Gate Valve Lockout SGVL11-17

    Ball Valve Lockout VSBL11-12

    Standard Gate Valve Lockout SGVL11-17

    Adjustable Valve Aluminum Alloy Blind Flange Lockout BFL01-03

    Adjustable Flanged Ball Valve Lockout FBVL01

    Gate Valve Lockout

    Gate Valve Lockout SGVL12

    Universal Valve Lockout With Arm And Cable UVL05

    Gate-valve lockout devices install over the valve knob after it has been closed to prevent it from being turned and energy restored to the pipe. A padlock is required to ensure the device isn’t removed by unauthorized personnel. These devices are an integral part of a facility lockout/tagout (LOTO) procedure designed to meet the OSHA standard for the Control of Hazardous Energy (Lockout/Tagout).

    .

    Gate-valve lockout devices install over the valve knob after it has been closed to prevent it from being turned and energy restored to the pipe. A padlock is required to ensure the device isn’t removed by unauthorized personnel. These devices are an integral part of a facility lockout/tagout (LOTO) procedure designed to meet the OSHA standard for the Control of Hazardous Energy (Lockout/Tagout).

    .

    Universal Valve Lockout With Cable UVL03

    Universal Valve Lockout With Two Blocking Arm UVL02

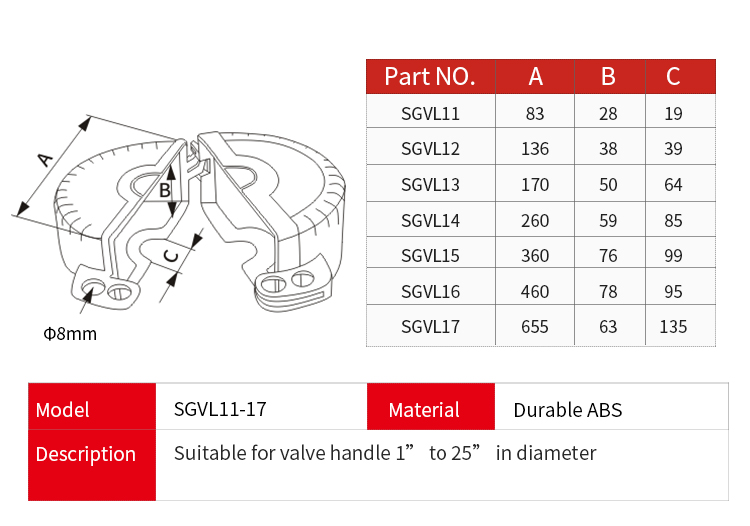

    Part No. Description A B C

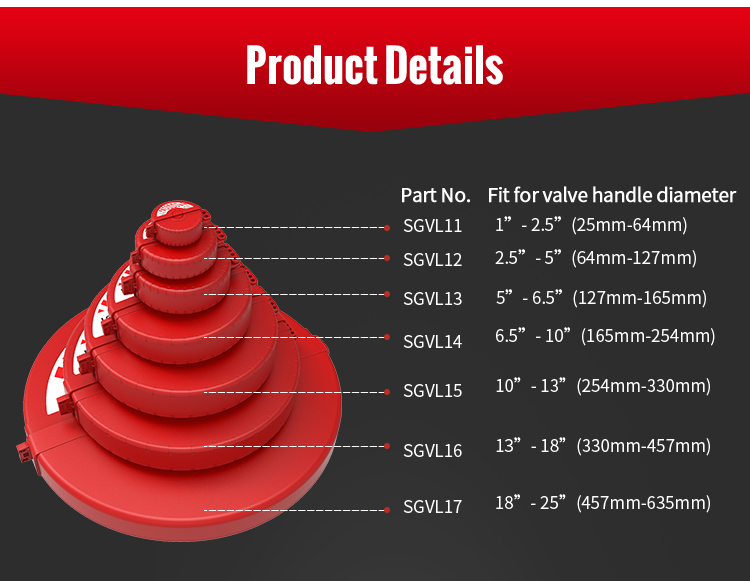

    SGVL11 Suitable for valve handle 1” to 2 1/2” in diameter 83 28 19
    SGVL12 Suitable for valve handle 2 1/2” to 5” in diameter 136 38 39
    SGVL13 Suitable for valve handle 5” to 6 1/2” in diameter 170 50 64
    SGVL14 Suitable for valve handle 6 1/2” to 10” in diameter 260 59 85
    SGVL15 Suitable for valve handle 10” to 13” in diameter 360 76 99
    SGVL16 460 78 95
