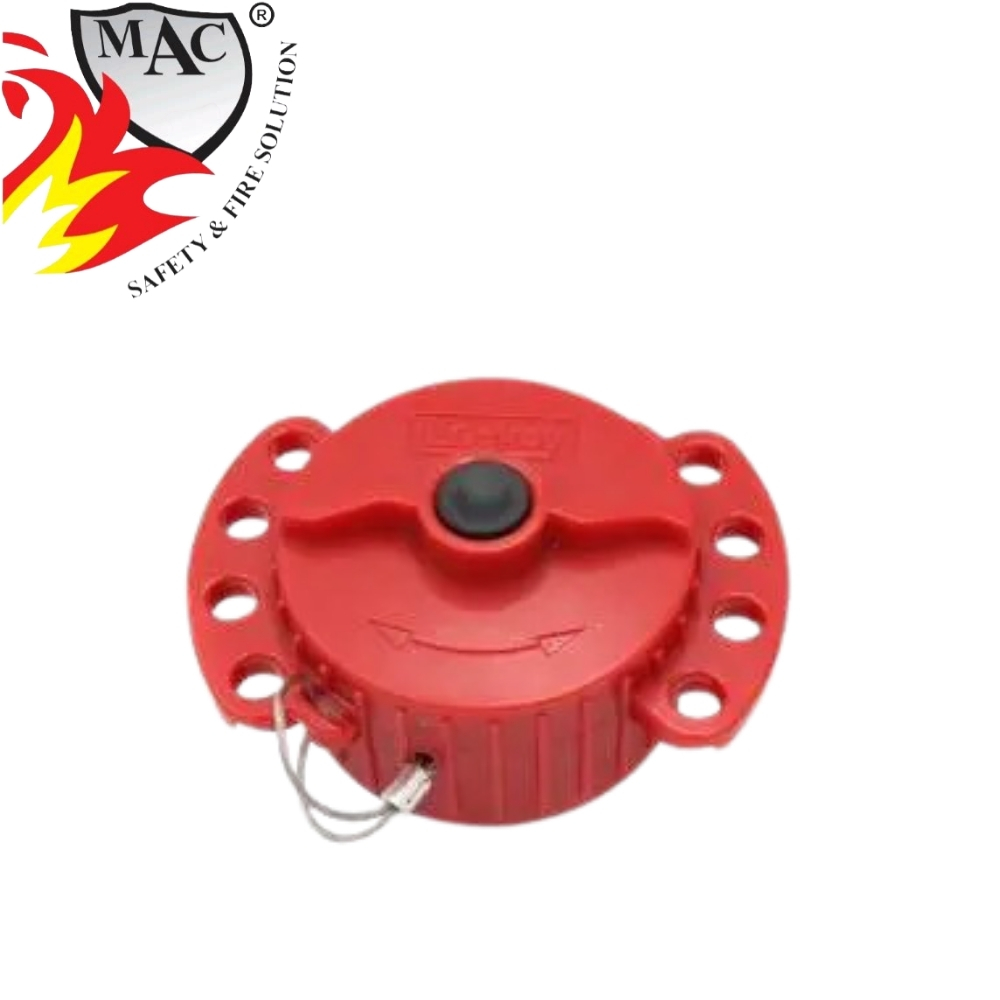

Auto Retractable Mini Cable Lockout CB06 (LOTO Safety Solution)
🌟 Key Features of the Auto Retractable Mini Cable Lockout CB06

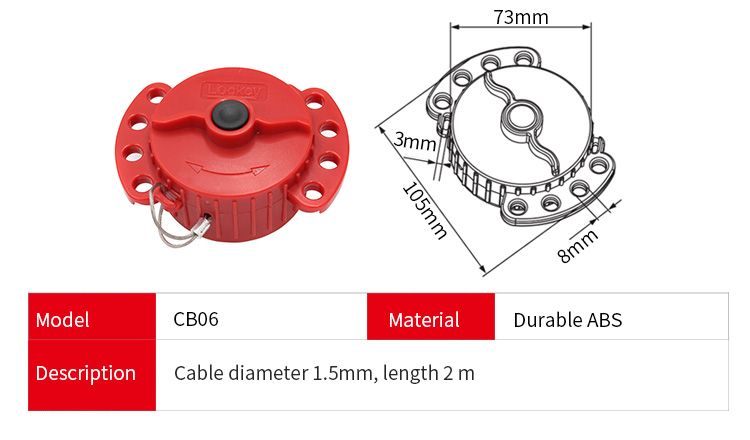

| Feature | Detail |
| Model No. | CB06 |
| Material | Durable ABS plastic body; Internal Stainless Steel cable. |
| Cable Specs | $\sim 1.5\text{ mm}$ to $2.0\text{ mm}$ diameter; $\sim 2\text{ meters}$ length (customizable). |
| Locking System | Push-button self-winding mechanism automatically cinches and retracts the cable. |
| Padlock Capacity | Accepts up to 8 padlocks for group lockout (LOTO) applications. |
| Max. Shackle Dia. | Fits padlocks with a shackle diameter up to $\sim 8\text{ mm}$. |
| Application | Disconnect switches, small gate valves, and other non-standard equipment. |
🛠️ Detailed Description and Functionality
The Auto Retractable Mini Cable Lockout CB06 is an essential component of a comprehensive LOTO program, providing a versatile solution for isolating energy in awkward or multi-point applications.3
1. Automatic Retraction for Maximum Security:

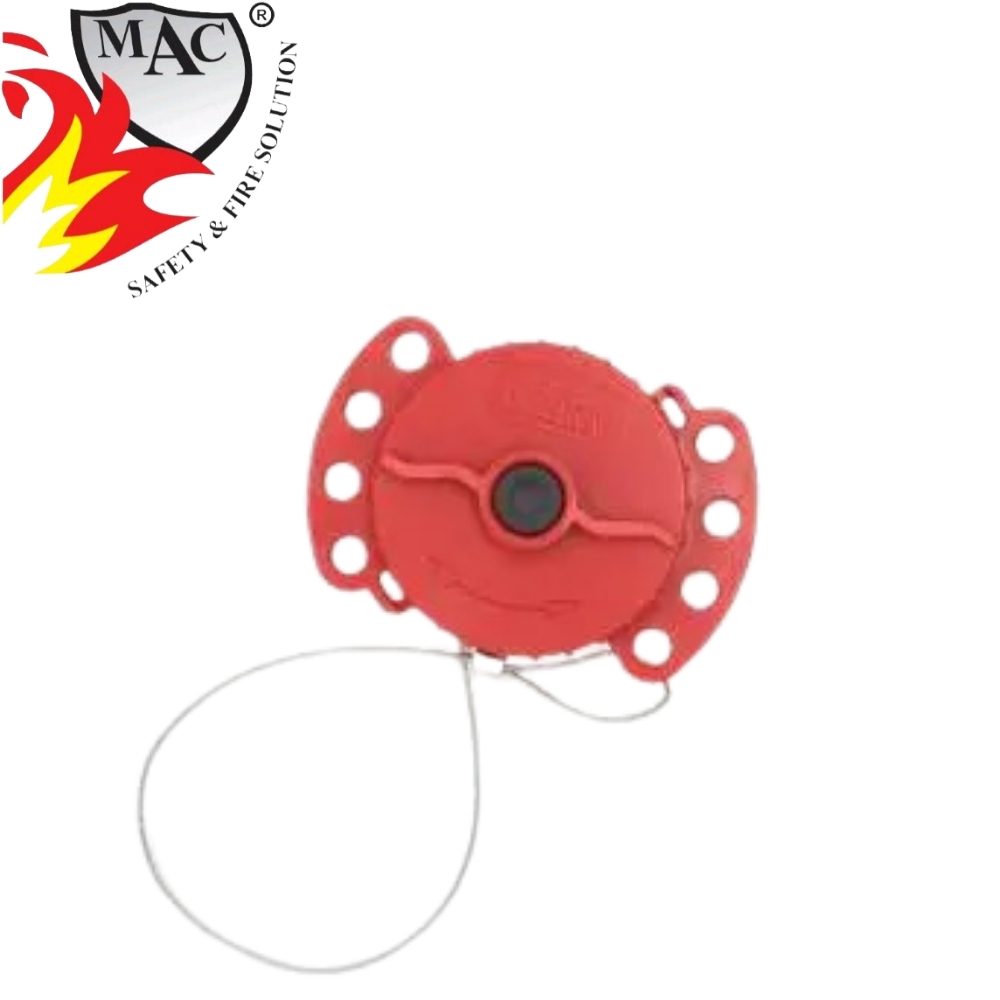

The standout feature of this device is the integrated push-button self-winding system.4 Unlike traditional adjustable cable lockouts that require manual cinching, the CB06 automatically retracts the excess cable after it has been routed around the isolation point.5 This eliminates cable slack, guaranteeing a tighter lock and preventing tampering or accidental release.
2. Durable and Versatile Construction:

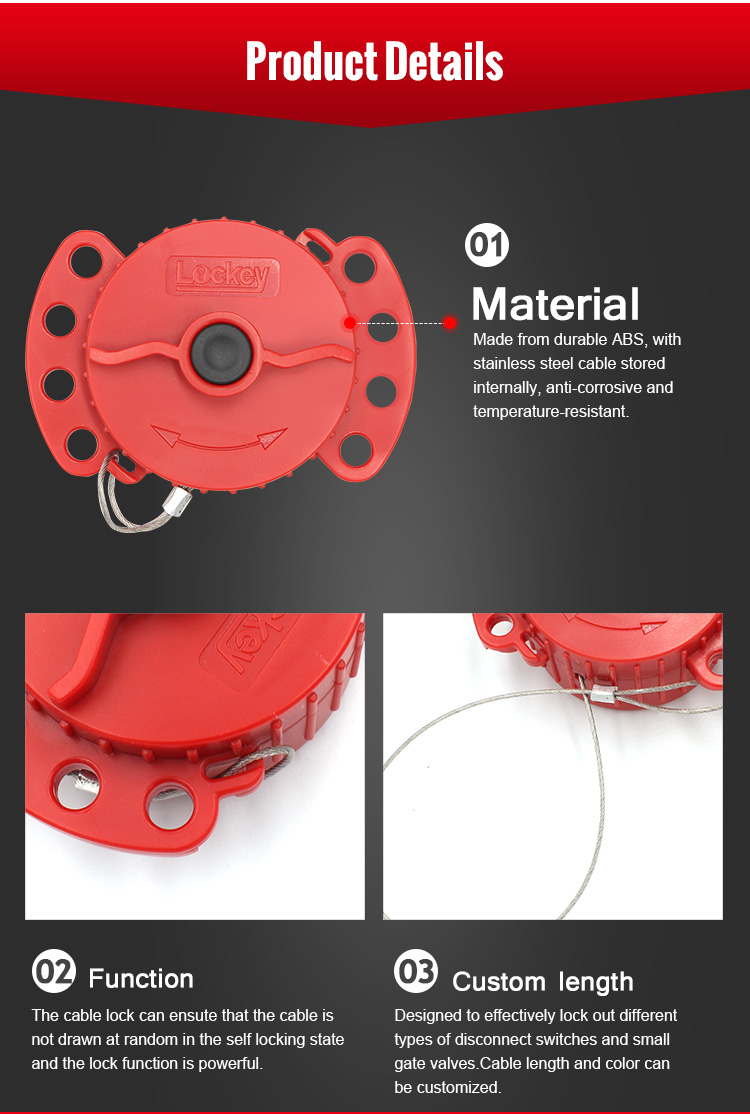

The compact body is made from durable, temperature-resistant ABS plastic, providing insulation and chemical resistance.6 The internal cable is a multi-stranded, anti-corrosive Stainless Steel cable (often with a PVC coating), offering both strength and flexibility to snake through various components.7
3. Group Lockout Capability:
The CB06 accepts up to 8 individual safety padlocks.8 This high-capacity design makes it perfect for group LOTO procedures, ensuring that the equipment remains de-energized and inaccessible until every worker involved in the maintenance/service has removed their personal padlock and tag.9
🌐 Retractable Mini Cable Lockout – Application and Use
The deployment of the Retractable Mini Cable Lockout CB06 is a critical safety measure in industrial, commercial, and manufacturing facilities in Pakistan. It is specifically designed for complex LOTO scenarios where conventional mechanical lockouts cannot be used.
Common Applications:
- Electrical: Securing electrical disconnect switches, control panels, and multi-point electrical sources.10
- Valve Control: Locking out small gate valves, ball valves, and any pipe or hose that requires a flexible tie-down.11
- General Machinery: Isolating non-standard machinery parts, levers, or handles in the “off” position.
By ensuring the cable is always tight and the device is highly portable and easy to operate, the Auto Retractable Mini Cable Lockout significantly enhances compliance with safety standards, protects workers from unexpected machinery startup or stored energy release, and ultimately contributes to a safer working environment.
Retractable Mini Cable Lockout
The Retractable Mini Cable Lockout (such as the Auto Retractable Mini Cable Lockout CB06) is a vital Lockout/Tagout (LOTO) tool used across high-risk industries in Pakistan. Its flexibility and automatic cable retraction make it perfect for complex or unusually shaped isolation points.
Here are the key areas in Pakistan where this device is used:
- Manufacturing Facilities (General):
- Securing smaller electrical disconnect switches.
- Locking out on/off levers and handles on various machinery.
- Oil and Gas/Petrochemical:
- Isolating small gate valves, ball valves, and other pipe fittings.
- Used for LOTO on localized control systems and pneumatic lines.
- Textile and Garment Industries:
- Locking complex machine guards and emergency stop buttons.
- Securing electrical panels on dyeing and finishing machinery.
- Pharmaceutical and Food & Beverage:
- Isolating smaller process valves and pipelines where hygiene standards are critical.
- Used on the controls of mixing and packaging equipment.
- Power Generation Plants (Thermal/Hydro/Renewable):
- Applying LOTO to secondary circuit breakers and switchgear.
- Securing non-standard or multi-point energy sources within the plant.
- Construction and Field Maintenance:
- Portable and essential for securing temporary power sources (like generators) and electrical plugs at construction sites.
- Used for group lockout procedures by threading the cable through multiple isolation points.
The core purpose in all these areas is to establish LOTO compliance, prevent accidental re-energization, and ensure maximum worker safety during maintenance activities.
General Characteristics
- Self-Retracting Mechanism:
- Features a push-button, self-winding reel (like a tape measure).
- Automatically retracts excess cable, eliminating slack for a tight, secure cinch.
- Prevents cable from tangling during storage and transport.
- Compact & Portable Design:
- Small, lightweight, and easily fits in a toolbox, pouch, or pocket.
- Ergonomic shape allows for easy handling, even when wearing gloves.
- Material and Durability:
- Body is typically constructed from tough, impact-modified engineering plastic (e.g., Glass-filled Nylon, ABS plastic).
- Offers superior resistance to industrial chemicals, corrosion, and extreme temperatures (common temperature resistance range is to ).
- Cable Specifications:
- Cable core is usually multi-stranded steel wire for strength.
- Cable is covered with an insulating and protective coating (e.g., PVC or Vinyl) for added durability and visibility.
- Available in different materials (steel core for general use, nylon core for dielectric/electrical applications).
- Lockout Versatility:
- Highly flexible and adjustable to secure irregularly shaped equipment that standard locks cannot handle.
- Suitable for both electrical isolation (switches, plugs) and mechanical isolation (small gate valves, levers).
- Equipped with multiple lock holes (e.g., 6 to 8) to accommodate multiple safety padlocks for Group Lockout procedures.
