Universal Multi-pole Circuit Breaker Lockout

Short Description:

Design & Material:

Type: Clamp-on device for multi-pole (two or three pole) circuit breakers with a tie-bar.
Material: Durable, impact-modified, non-conductive Nylon (often Glass-filled Nylon) with a Stainless Steel screw/thumbscrew.
Color: Typically Red for high visibility and to denote a safety/hazard control device.

Size & Dimensions (Approximate):

Width: $\sim 1.25$ inches to $2.45$ inches ( $\sim 31.75\text{ mm}$ to $62.23\text{ mm}$ )
Depth/Length: $\sim 1.05$ inches to $2.25$ inches $\sim 26.67\text{ mm}$ to $57.15\text{ mm}$ )
Weight: Very light, $\sim 20$ grams $0.044\text{ lbs}$

Locking Capability:

Padlock Capacity: Can accommodate 1 to 2 safety padlocks.
Max. Shackle Diameter: Fits most standard safety padlocks, generally up to $9/32$ inches $\sim 7.1\text{ mm}$ or $7\text{ mm}$ .
Application: Used for $120/277\text{V}$ circuits.

Call Us Email Us

Product Detail
Additional information

Universal Multi-pole Circuit Breaker Lockout:

The Universal Multi-pole Circuit Breaker Lockout is an essential Electrical Safety Device for compliance with LOTO (Lockout/Tagout) standards.¹ This device is widely used in industrial and commercial sectors, including in Pakistan, to isolate hazardous electrical energy.

Universal Multi-pole Circuit Breaker Lockout in Pakistan

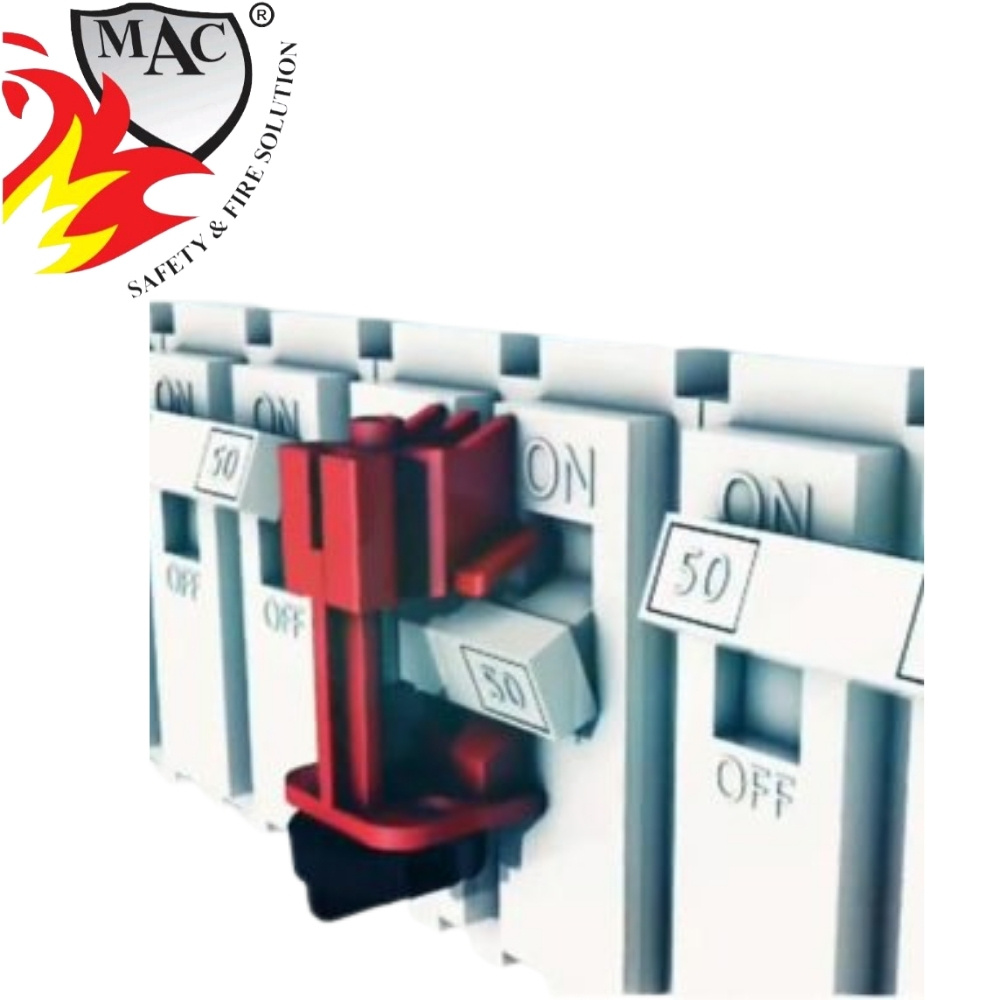

The Universal Multi-pole Circuit Breaker Lockout is a specialized, non-conductive Circuit Breaker Lockout designed to secure Multi-pole Circuit Breakers (typically 2-pole or 3-pole) in the OFF position. Its Universal design allows it to fit over the Tie-Bar Breaker Lockout assembly common to numerous breaker brands.²

This Clamp-on Breaker Lockout employs a straightforward thumbscrew mechanism for tool-free installation, making the LOTO (Lockout/Tagout) procedure quick and secure.³ Its primary purpose is to prevent accidental or unauthorized re-energization during maintenance, thus protecting personnel from the severe risk of electrical shock.⁴ Availability and use of the Universal Multi-pole Circuit Breaker Lockout in Pakistan are vital for fostering a culture of safety across the country’s growing industrial base.

Specification: Universal Multi-pole Circuit Breaker Lockout

The specifications for the Universal Multi-pole Circuit Breaker Lockout underscore its durability and effectiveness as a key Electrical Safety Device.

Specification Detail	Value / Range
Material	Impact-Modified / Glass-filled Nylon (Robust and Non-conductive)
Color	Red (Standard safety color for high visibility)
Compatibility	Most Multi-pole Circuit Breakers with a Tie-Bar Breaker Lockout assembly
Locking Mechanism	Hand-operated Thumbscrew (Stainless Steel)
Padlock Capacity	Typically 1 or 2 safety padlocks (to allow multiple tradesmen to lock out)
Max. Shackle Diameter	$\sim 7 \text{ mm}$ ( $\sim 0.28 \text{ inches}$ )
Temperature Range	$\sim -20^\circ \text{C}$ to $+120^\circ \text{C}$ (or $-4^\circ \text{F}$ to $248^\circ \text{F}$ )
Dimensions (Approx.)	$\sim 62 \text{ mm} \text{ W} \times 32 \text{ mm} \text{ D}$ ( $\sim 2.45'' \text{ W} \times 1.25'' \text{ D}$ )

Features: Universal Multi-pole Circuit Breaker Lockout

The core features make this Circuit Breaker Lockout highly effective and easy to integrate into any LOTO (Lockout/Tagout) protocol:

Universal Compatibility: The primary feature is its Universal Multi-pole Circuit Breaker Lockout design, which fits a wide variety of 120/277V Multi-pole Circuit Breakers from numerous manufacturers, simplifying inventory management for companies.
Tool-Free Application: The Clamp-on Breaker Lockout utilizes an adjustable thumbscrew for quick and secure application directly onto the breaker’s Tie-Bar Breaker Lockout switch, requiring no separate tools.⁵
High Security: When the safety padlock is applied, it physically blocks the thumbscrew from being loosened, providing a strong physical barrier against unexpected re-energization.⁶
Durability: Constructed from rugged, glass-filled nylon, this Electrical Safety Device offers excellent resistance to heat, chemicals, and abrasion, ensuring a long service life in harsh industrial environments.⁷
Group Lockout Ready: The ability to accept up to two padlocks facilitates safe team-based maintenance procedures, a key requirement of LOTO (Lockout/Tagout) standards.⁸

How to Use the Universal Multi-pole Circuit Breaker Lockout

Proper application of the Universal Multi-pole Circuit Breaker Lockout is crucial for safety.

Preparation and De-energization: Follow established procedures to identify the correct Multi-pole Circuit Breaker and move its handle(s) to the OFF position.
Mount the Device: Open the Circuit Breaker Lockout by turning the thumbscrew counter-clockwise. Place the Clamp-on Breaker Lockout over the handles, ensuring the locking arm/tongue rests under the Tie-Bar Breaker Lockout assembly.⁹
Secure the Clamp: Turn the thumbscrew clockwise firmly by hand until the device is clamped tightly to the breaker, preventing any movement of the handles.¹⁰
Apply Lock and Tag: Insert your personal safety padlock through the designated hole to secure the thumbscrew.¹¹ Attach a warning tag (Tagout) that identifies the worker and the work being performed.¹²
Verify Isolation (Tryout): Attempt to turn the breaker handle ON to confirm the Universal Multi-pole Circuit Breaker Lockout is securely in place and the circuit is completely isolated, fulfilling the final critical step of the LOTO (Lockout/Tagout) process.

Availability in Pakistan: Circuit Breaker Lockout in Pakistan

The Circuit Breaker Lockout in Pakistan market is well-supplied by safety equipment vendors and distributors who offer the Universal Multi-pole Circuit Breaker Lockout.

Industrial and manufacturing businesses in Lahore, Karachi, Islamabad, and other cities prioritize this Electrical Safety Device to comply with international best practices. the Universal Multi-pole Circuit Breaker Lockout in Pakistan include local safety equipment distributors and online industrial supply platforms. The Circuit Breaker Lockout in Pakistan market provides high-quality devices crucial for electrical safety. Companies readily find the Universal Multi-pole Circuit Breaker Lockout model.

Key Information Bullet Points

Universal Multi-pole Circuit Breaker Lockout: Essential for locking out two- and three-pole breakers with a tie-bar switch.¹³
LOTO (Lockout/Tagout) Compliance: A necessary component to isolate energy sources and meet safety regulations in Pakistan.
Material: Made from non-conductive, durable Glass-filled Nylon for reliable performance as an Electrical Safety Device.¹⁴
Installation: Features a Clamp-on Breaker Lockout design with a thumbscrew for tool-free, rapid application.
Market: The availability of the Circuit Breaker Lockout in Pakistan ensures local industries can effectively implement their safety programs.
Security: Accepts personal safety padlocks to provide positive isolation
