Large Moulded Case Circuit Breaker Lockout CBL201
Short Description:
Circuit Breaker Lockout in Pakistan
- Circuit Breaker Lockout devices are essential for enforcing Lockout Tagout (LOTO) procedures across Pakistan.
- They function as primary safety tools to prevent the accidental or unauthorized re-energization of electrical systems.
- Key products include the CBL201 Large Moulded Case Circuit Breaker Lockout and smaller MCB lockouts.
- A full LOTO program in Pakistan requires these lockouts, along with safety padlocks, tags, and complete LOTO Kits.
- Utilizing a Circuit Breaker Lockout ensures compliance with safety regulations and maximizes worker protection against hazardous energy.COLOR :RED
Circuit Breaker Lockout in Pakistan
Circuit Breaker Lockout devices are critical safety tools essential for implementing a successful Lockout Tagout (LOTO) program in any industrial or commercial setting in Pakistan. These devices are designed to physically isolate and secure circuit breakers, preventing accidental or unauthorized power restoration during maintenance, inspection, or repair work.1 This adherence to strict safety standards, such as those governed by OSHA, is vital for worker protection against hazardous electrical energy.2
Importance of Circuit Breaker Lockout in Pakistan
Given the industrial landscape and focus on workplace safety in Pakistan, utilizing robust Circuit Breaker Lockouts is non-negotiable for safety compliance. They ensure that electrical energy sources are controlled before an authorized employee begins servicing equipment.3
| Device Type | Function & Application |
| Large Moulded Case Circuit Breaker Lockout (MCCB) (e.g., CBL201) | Used for securing large main electrical disconnects and switches in the “OFF” position. Ideal for high-amperage systems. |
| Miniature Circuit Breaker Lockout (MCB) | Used for smaller, usually single or multi-pole, distribution board breakers. |
| Universal Circuit Breaker Lockout | Adjustable device designed to fit a wide range of breaker handles where dedicated devices may not fit. |
A Moulded Case Circuit Breaker (MCCB) Lockout device like the Circuit Breaker Lockout CBL201 is a critical component of any Lockout/Tagout (LOTO) safety program, especially in industrial environments.
Circuit Breaker Lockout CBL201: Essential Electrical Safety

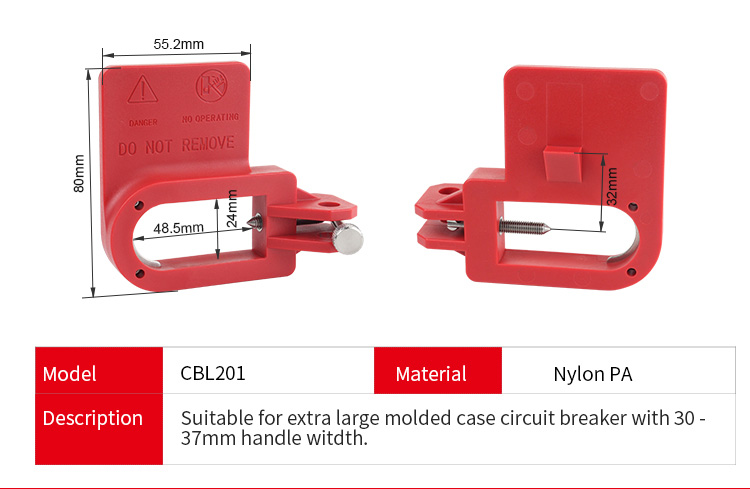

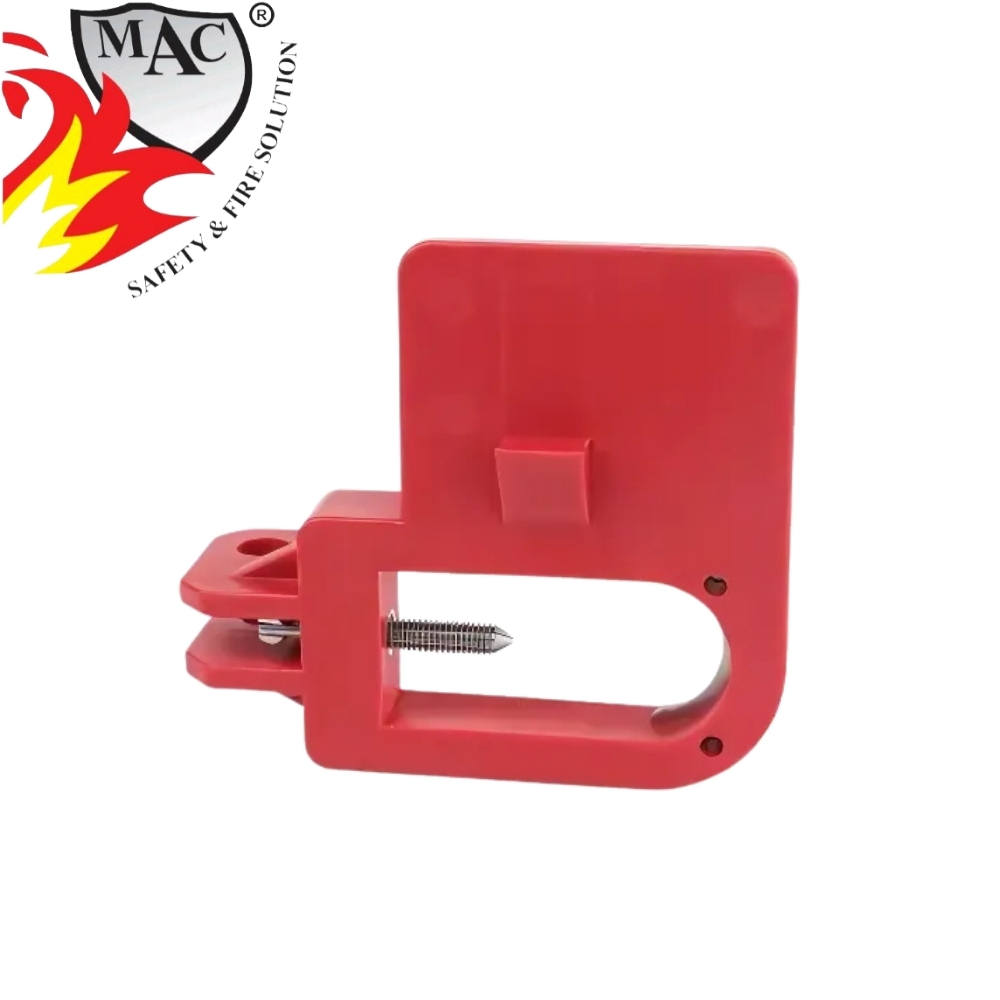

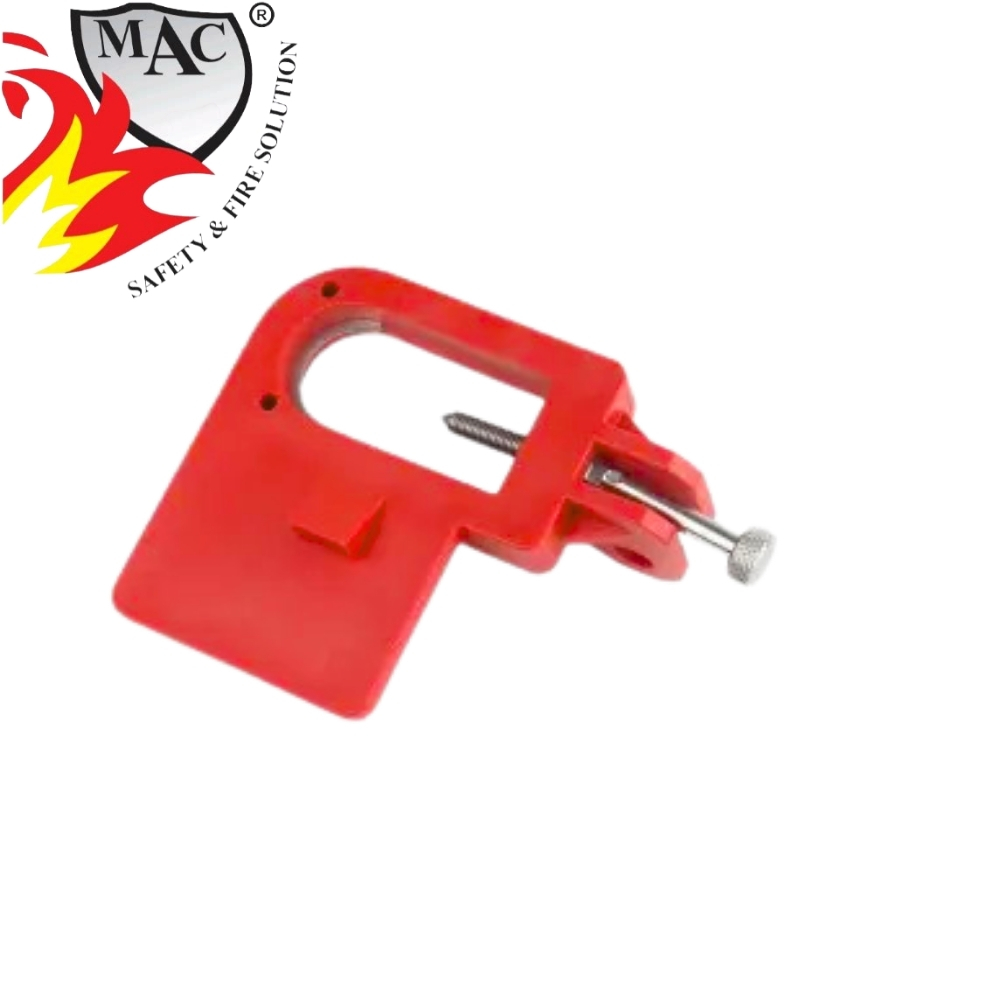

The Circuit Breaker Lockout CBL201 is designed specifically to secure large-handle Moulded Case Circuit Breakers (MCCBs) in the “OFF” (de-energized) position, preventing them from being accidentally or deliberately switched back on during maintenance, cleaning, or repair work.1 This ensures worker safety and compliance with OSHA and international LOTO standards.

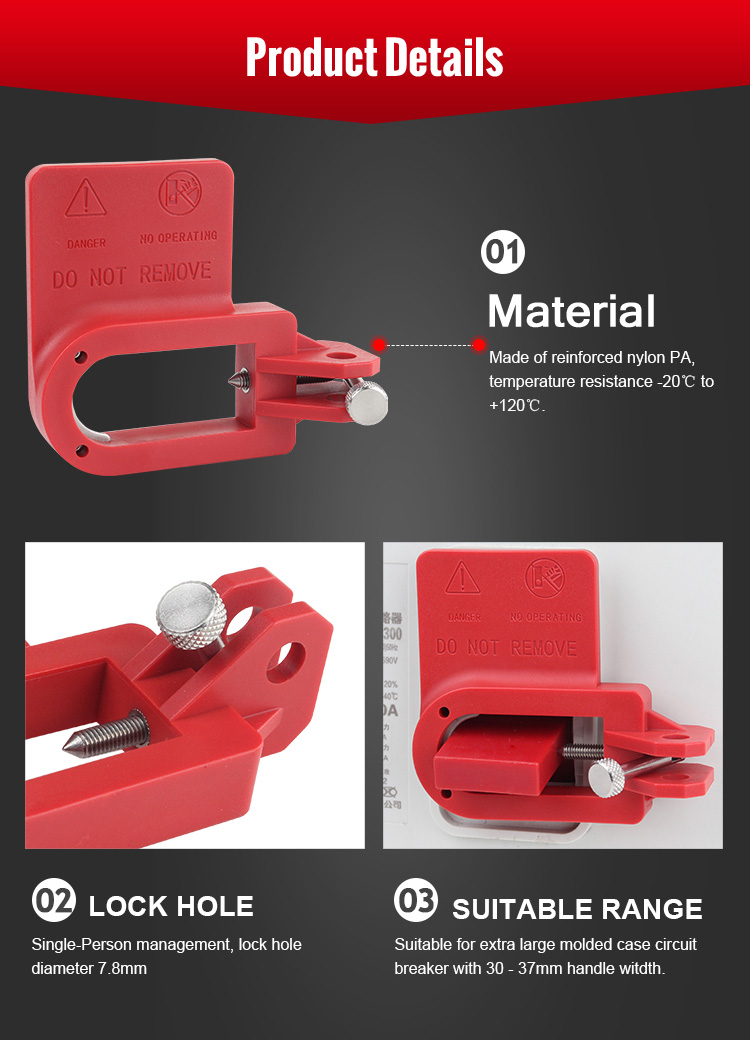

I. Description and Features of Circuit Breaker Lockout CBL201
The Circuit Breaker Lockout CBL201 (or similar large MCCB clamp-on devices) falls under the category of universal electrical lockout devices.
| Feature | Description | Importance |
| Compatibility | Designed for Large Moulded Case Circuit Breakers (MCCB), including single, double, and triple-pole switches with wide or tall handles. | Ensures one device can secure a variety of main disconnects. |
| Material | Typically made from rugged, non-conductive engineering plastic (like Nylon PA) and/or stainless steel components. | Provides high resistance to impact, chemicals, and temperature fluctuations; crucial for safety in electrical work. |
| Locking Mechanism | Often uses a clamp-on or thumb-wheel screw-tightening design. The user turns a knob to firmly secure the device to the breaker handle. | Allows for quick, tool-free installation and a tight, tamper-proof grip. |
| Padlock Hole | Features a designated hole (e.g., 9mm diameter) to accommodate a standard LOTO safety padlock. | This is where the individual worker applies their lock to retain control of the energy source. |
| Installation | “No-Tool” installation is a common feature, using a simple hand-tightened screw or toggle mechanism. | Speeds up the LOTO procedure, increasing compliance and efficiency. |
II. How to Use the Circuit Breaker Lockout CBL201 (LOTO Procedure)
Using the Circuit Breaker Lockout CBL201 is part of the overall LOTO (Lockout/Tagout) process:
- Preparation: Notify all affected employees that power must be shut off for maintenance.
- Shutdown: Follow the documented procedure to shut down the machine or equipment.
- Isolation: Locate the main Circuit Breaker (the MCCB) controlling the equipment and switch it to the OFF position.
- Application of Lockout Device:

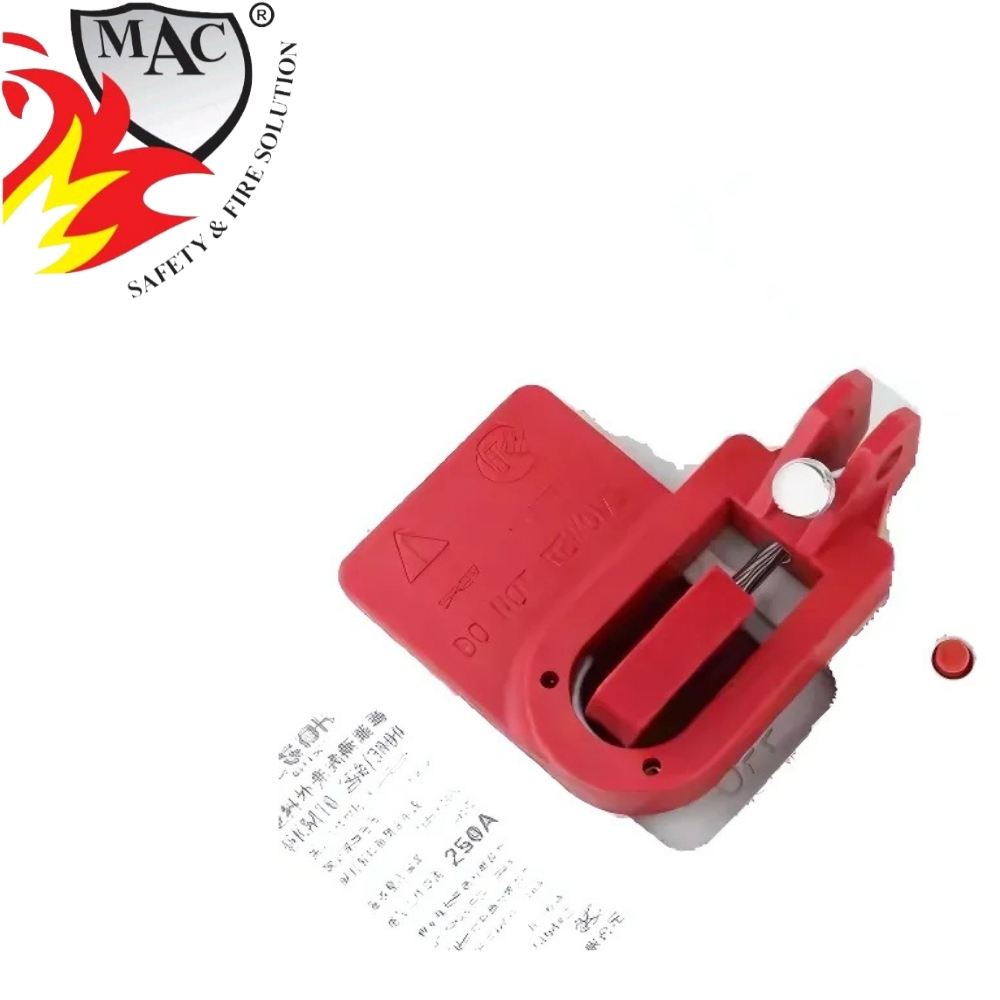

- Place the Circuit Breaker Lockout CBL201 device over the MCCB handle/toggle.2
- Rotate the thumb-wheel or set screw clockwise to firmly tighten the device onto the breaker handle, ensuring it cannot move back to the “ON” position.3
- Lock and Tag:
- Insert a unique personal LOTO safety padlock through the hole on the Circuit Breaker Lockout CBL201.
- Attach a safety tag to the padlock, clearly identifying the worker, date, and reason for the lockout.
- Verification: Test the circuit breaker handle (try to turn it on) to verify that the Circuit Breaker Lockout device is secure and the machine cannot be energized.4
III. The Importance of Circuit Breaker Lockout in Pakistan
Adopting proper Circuit Breaker Lockout and LOTO procedures is vital for industrial safety across all sectors in Pakistan.
- Hazard Mitigation: Electrical accidents are a major workplace hazard.5 The use of a quality Circuit Breaker Lockout device prevents tragic injuries or fatalities caused by unexpected start-up or sudden release of electrical energy.6
- Regulatory Compliance: While specific local regulations may vary, adherence to international best practices (like those enforced by OSHA) is a requirement for many multi-national and certified local companies in Pakistan.
- Supplier Availability: Several suppliers and distributors in Pakistan specialize in safety equipment, providing comprehensive LOTO solutions, including the necessary Circuit Breaker Lockout devices, safety padlocks, and lockout training, supporting the national drive for safer workplaces.
